Features
- Built-in Raspberry Pi CM4
- Wide Range Input Power (DC 9 ~ 32V)
- Multiple I/O Interfaces
- Powerful Computing capability
- CPU Heatsink Transfer Heat To Metal Housing
- M.2 key B for 5G (Default)
- M.2 key M for PCIe SSD / AI (optional)
- Mini-PCIe (for 4G/NB-IoT/LoRa)
Overview

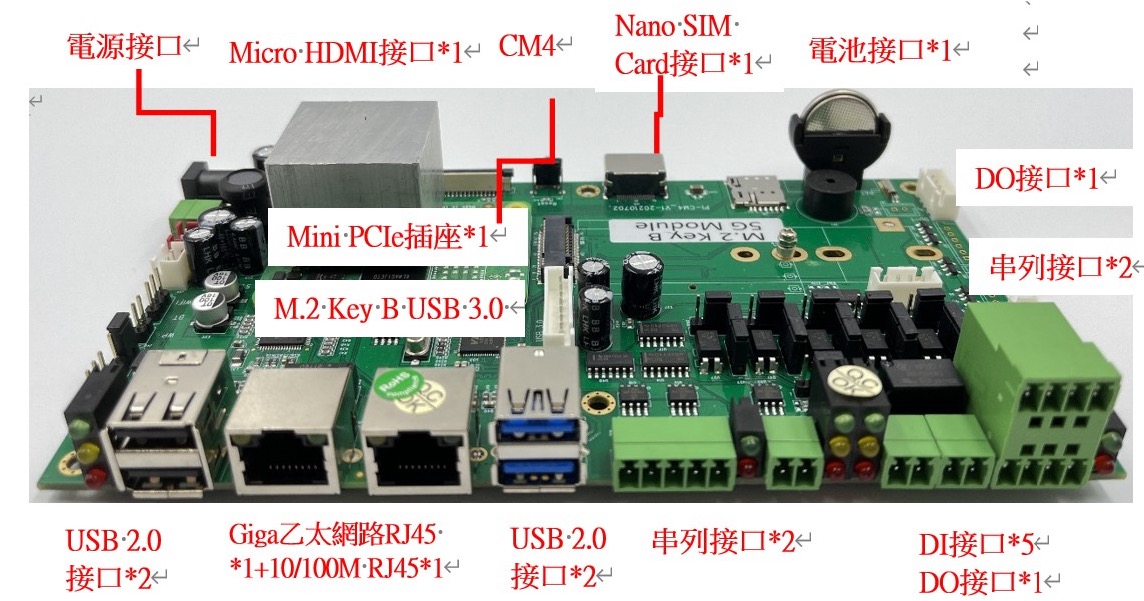

Diagram
Specification
Download
Overview
Raspberry Pi COMPUTE MODULE 4 is built on the 64-bit quad-core BCM2711 applications processor. Compared with the previous version, Compute Module 4 has major changes in performance, such as faster CPU cores, better multimedia and more interface functions.
High performance
The core adopts industrial Broadcom BCM2711, which has 4 core computing capabilities and can perform AI extreme data edge computing 。

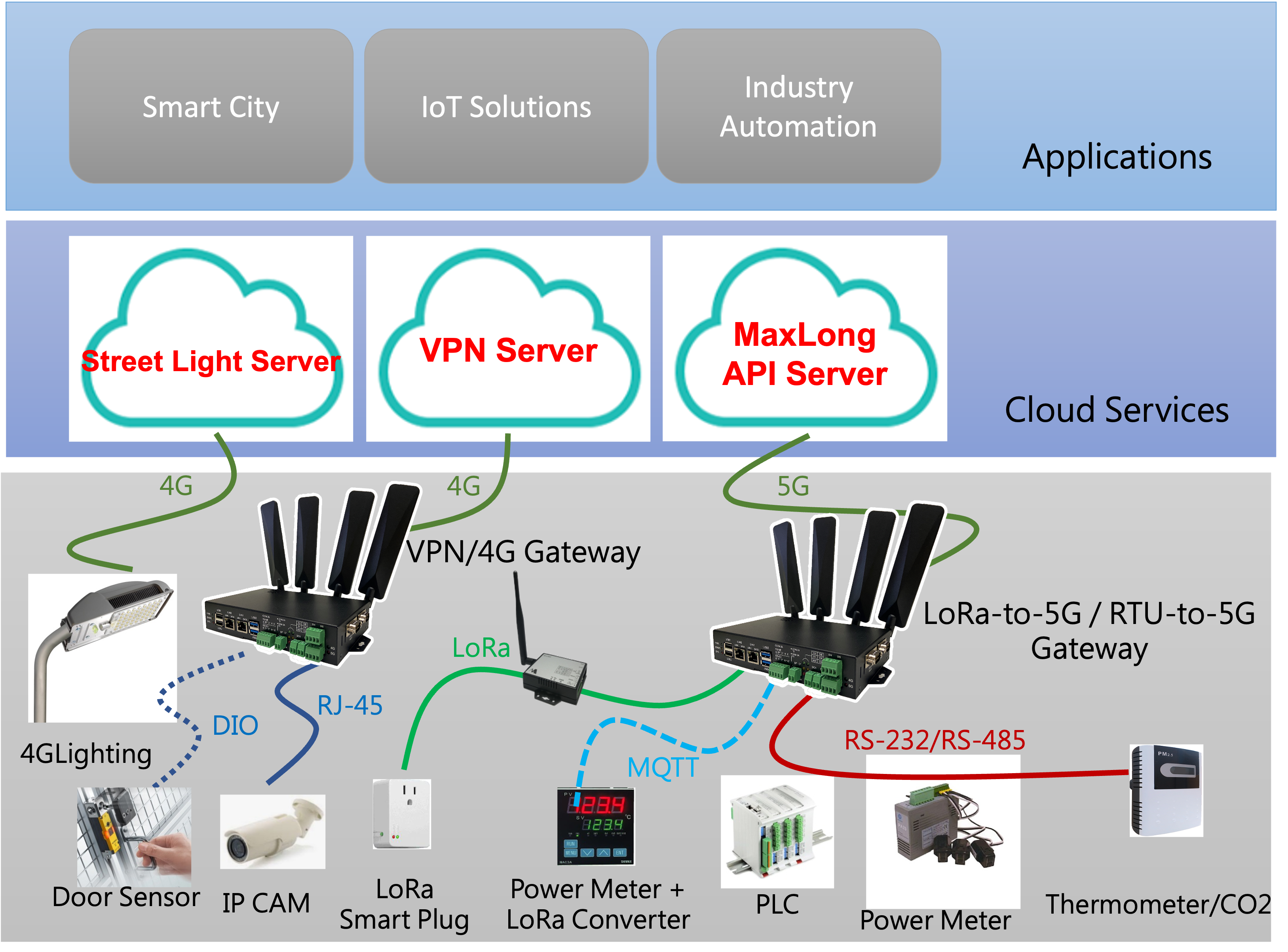

Great flexibility(Optional):
- Use LTE 4G/5Gmodules to achieve high transmission, low latency, and meet field applications .
- Use the LoRa module to become a LoRa controller. After collecting local data, it communicates with the cloud through the mobile network.
- USB 3.0 can be connected to AI nerve stick for high-speed computing.
Diagram
Specification
Download
