Overview

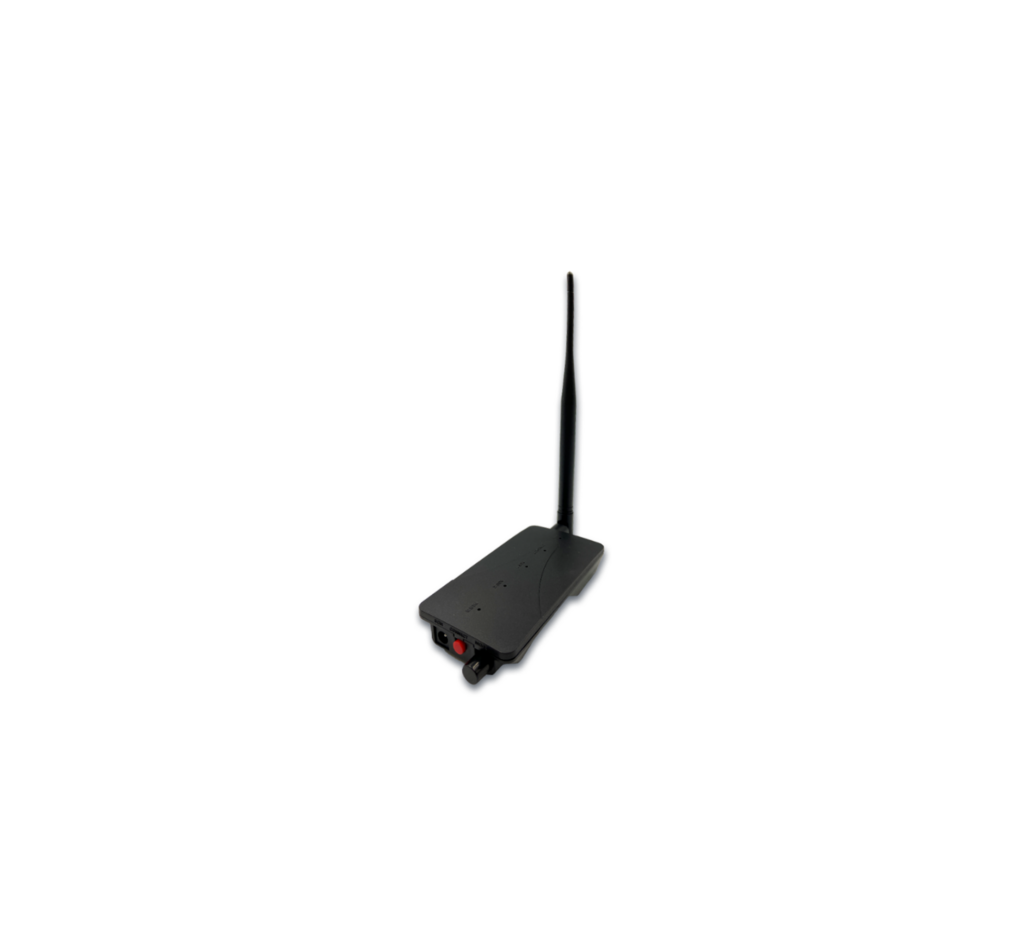

- The SKY AH100 product builds a long-range ultra-low power WiFi network in the license-free frequency band below 1GHz. AH100 supports two operation modes, namely AP mode and STA. Through the mode selection button, users can easily set the operation mode of AH100. For ease of use and installation, the AH100 provides a pairing button to establish a WiFi network instead of complex manual settings.
- An AP can support multiple STA connections at the same time. The total number of STAs depends on the traffic volume and applications. Therefore, use an appropriate number of STAs to obtain the best overall performance.
Diagram
Specification
| Frequency | 915MHz (US) (902MHz~928MHz) |
| Modulation | OFDM with BPSK, QPSK, 16QAM, 64QAM |
| Data Rate | 150Kpbs ~ 15Mbps |
| Channel Bandwidth | 1/2/4/8 MHz |
| Antenna Connector | SMA |
| Interface | RJ45 |
| LED | PWR x 1 / Connect x 1 / RSSI x 3 |
| Button | AP/STA Mode x 1 / Pairing x 1 |
| DC Jack | 5V~12V@1A |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~70℃ |
