詳細規格
詳細規格

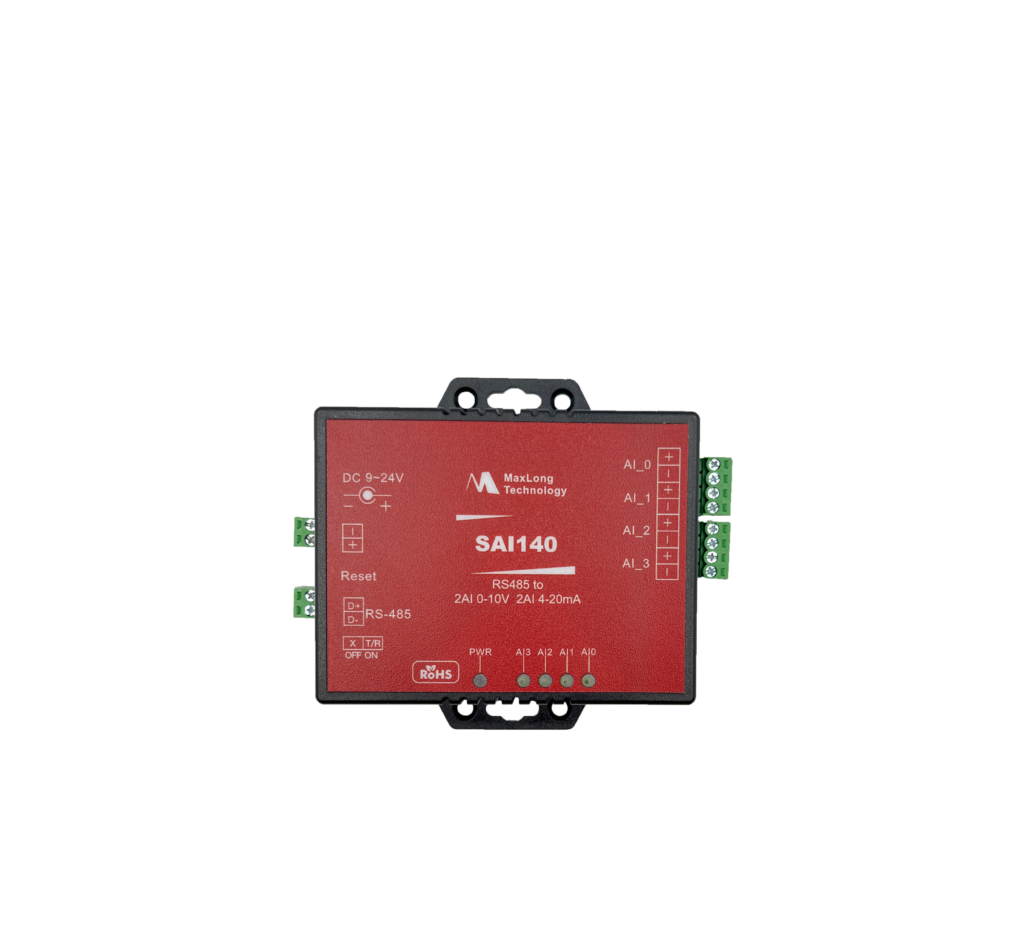

TYPE Information
AI-140-16 ：4~20 ma * 2 Channels, 0~10V * 2 Channels
AI-140-16-A ：4~20 ma*4 Channels
AI-140-16-V ：0~10V *4 Channels
Hardware
CPU：8-bit CPU
RAM：64K bytes SRAM
ROM：256K bytes Flash ROM
Analog Input
16 bits resolution
Support 0~10V , 4~20 mA
Serial Port * 1 port
Port：RS- 485 * 1 Port ( Terminal Block )
Speed：300 bps ~ 115.2 Kbps
Parity：None
Data Bit：8
Stop Bit：1
Surge Protect
Support Modbus RTU
Watch Dog Function
Power Input：DC 9 ~ 24 V , 200mA @ 12VDC
support DC Jack & Terminal Block
LED Lamp： PWR , Rx , Tx
Environment
- Operating Temperature: -10℃ ~ +70℃
- Storage Temperature : -20℃~ +85℃
Dimension：90 * 60 * 20 mm ( W * D * H )
Din-Rail and Panel mounting options
Regulatory Approval：
CE / FCC
RoHS
Warranty：1 year
